> >>Flexible cable with grounding connector for electrosensitive persons

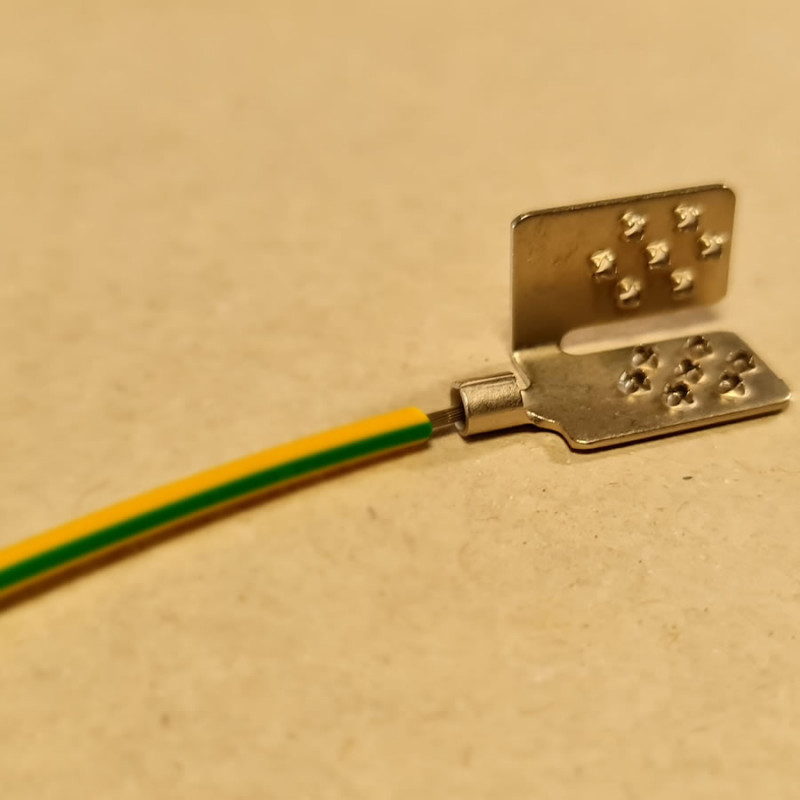

Flexible cable with grounding connector for electrosensitive persons

Earth connection of our aluminum insulators for the protection of electro-sensitive persons.

Conductor diameter: 0.75mm².
Protection: double insulation (class 2).
Available colors: green and yellow.
Sold in multiples of 5 meters.
Electrical conductor: tin-plated copper (rust-proof).
Reaction to fire: Non-flame propagating, category C2 according to NF C 32-070, IEC 60332-1
Fixing to aluminum insulation: tin-plated copper claw lug.

More details

644 Items

In stock for delivery within 3 days (France stock)


Poser une question (0)

10,77 € tax incl.

-5%

11,34 € tax incl.

Date de livraison

Warehouses:

  • STOCK FRANCE - STOCK FRANCE : ItemItems Unavailable In Stock

More info

Thin : Ideal for keeping the volume of the parts.
Economical : Replaces a solution of air-conditioning expensive.
Healthy : Does not require the wearing of protective equipment.
Practice : Semi-rigid. Very good resistance to flat. Can be cut easily with a knife.
Durable : Items reflectors of pure aluminium. Do tassera not in time. No risk of corrosion.
Protective : Impervious to water, fungi, rodents and insects.

Reflects heat in the form of far infrared

Description: Insulator thin flame retardant, coated on a sheet of pure aluminum on both sides.
Functions: vapour barrier, air tightness, thermal insulation by reflection.
RTE (Retter resistance Thermique Equivalente) = 1,26 (with 2 blades of air).

Acoustic insulation to thermoréflexion

95%

Reflection

Its reflection coefficient is very high.
In winter : cross Reference 95% of the heat produced in the form of infrared light.
In summer : Keeps the freshness.

300 gr/m2

Density

Lightweight insulation so as not to overload the structure. It is resistant to bending.
It becomes rigid once in place to facilitate its implementation and screwing around.

Bs1,d0

Flame retardant
Can be installed in places open to the public.
It protects your home and its occupants against the risk of fire .

0,028 λ

Conductivity
Its thermal conductivity is very low to prevent the cold to come in through the ceiling and walls and to direct the flow of heat from a ceiling heating down.

Insulation high-performance

R BULL pro 5 is the insulator that is chosen to preserve the ceiling height.

It is a superior quality insulation designed by professionals for professionals who want a product fast to post like a bolt of lightning, light as a feather, solid as a rock, as secure as a firehouse and healthy as the great outdoors.

Made up of a multitude of air bubbles are closed-cell, semi-rigid and coated with pure aluminum, 5mm thick will allow you to maximize the living space.

R'BULL pro 5

An insulator of type "double glazing"

Consisting of two aluminium sheets separated by a blade of air bubbles sealed, the insulation is performing well thanks to its high power of reflection.
Its effectiveness can be enhanced by creating a plenum seal.
R'BULL pro 13

R BULL pro 5

The two sheets reflecting the constituents of the envelope of the insulation are pure aluminum designed to maximize the reflection of heat transmitted in the form of infrared radiation.
A polyethylene film protects the aluminum from any risk of blows or tears.

Callback request

*Mandatory information

Data sheet

Length Sold in multiples of 5 metres
Nominal cross-section 0.75 mm² for
Insulated conductor diameter 1.6 mm
Nominal outside diameter 2.5 mm
Approximate linear mass 13 kg/km
Electrical protection Double insulation (class 2)
Operating temperature -15°C to +70°C
Reaction to fire Non-flame propagating category C2 according to NF C 32-070, IEC 60332-1
Nature of the soul Flexible tin-plated copper core class 5 - IEC 60228
Color Green and yellow
Insulation PVC type TI2 - NF C 32-201-1 Colour: natural
Outer sheath PVC type TI2 - NF C 32-201-1 Plain colors
